Gable knight special: elevator shaft version
€2,845.00 (Excl. VAT)
€3,442.45 (Incl. VAT)In stock
Gable knight special: elevator shaft version

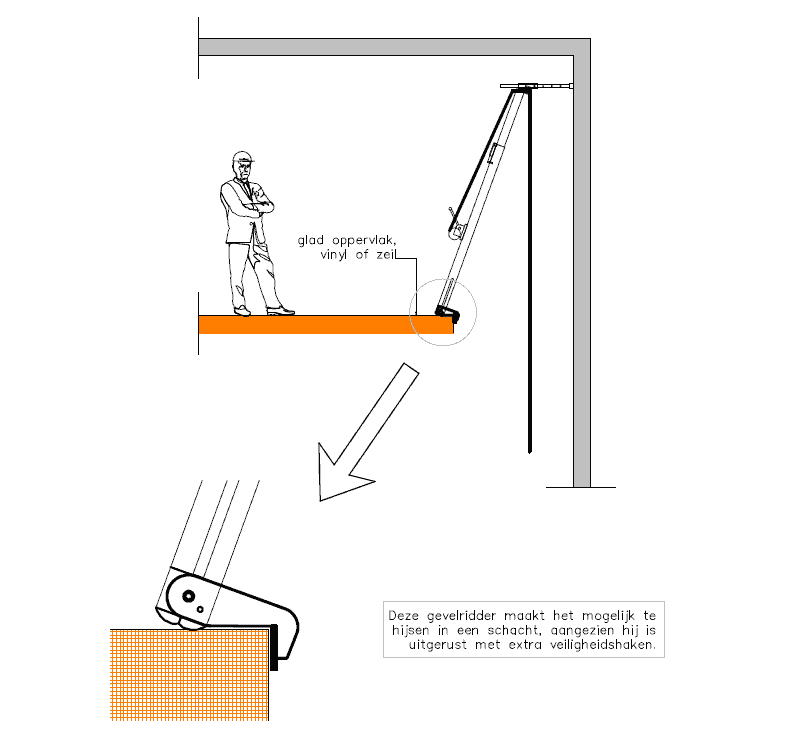

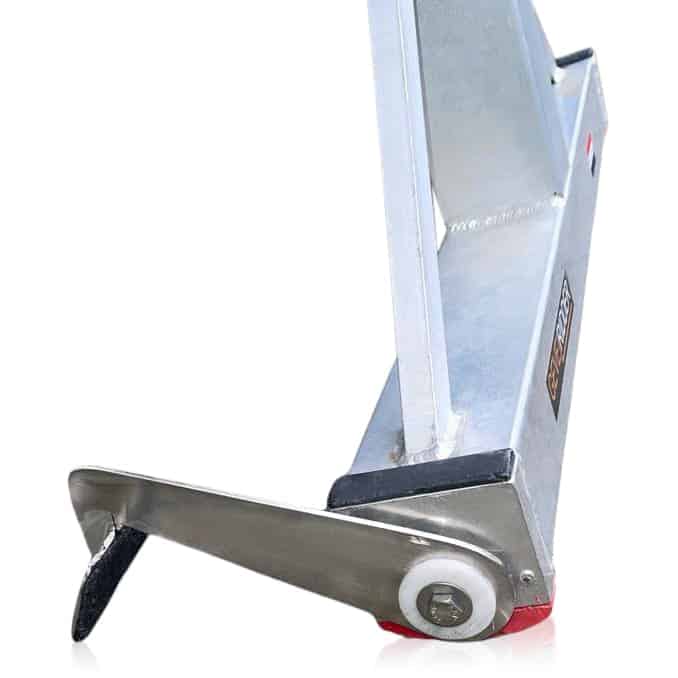

The Gevelridder special: Elevator shaft version is equipped with special safety hooks which can be turned over the edge of the shaft. In combination with a new light winch, which can be operated with a crank but also with cordless drills, this is an ideal hoisting device for use in an elevator shaft. The winch is mounted on the outside of the Gevelridder, so there is more working space under the Gevelridder. This Gevelridder is custom made, delivery time is approximately 2 weeks. Thanks to the compact retracted size, this type can be easily carried in a car or small bus. . Transport length 2400 mm, foot width 850 mm. Extendable up to 4 meters in 2 parts (WLL 200 kg). With use of the third part extendable up to 5850 mm (WLL 200 kg). Note: When working with the Gevelridder, you should never go under the load. In addition to the fixation of the hooks, the Gable Knight should be secured to the floor in an elevator shaft with a safety strap.
Gable knight special: elevator shaft version
The Gevelridder special: Elevator shaft version is equipped with special safety hooks which can be turned over the edge of the shaft. In combination with a new light winch, which can be operated with a crank but also with cordless drills, this is an ideal hoisting device for use in an elevator shaft. The winch is mounted on the outside of the Gevelridder, so there is more working space under the Gevelridder. This Gevelridder is custom made, delivery time is approximately 2 weeks. It is an ideal product for lifting heavy objects, both indoors and outdoors. By using the included spacer, you can easily lift it over a windowsill, for example, or place the Gevelridder at some distance from the wall so that you can drive a glass cart between them. On this Gevelridder special: Lift Shaft version, a boom head (optional) can also be placed, creating space to place a rolling scaffold between the Gevelridder and the Facade. Another new feature is that the counterweight above the hook is protected with a rubber sleeving to protect your object being hoisted. Thanks to its compact retracted size, this type can be easily carried in a car or small bus. . Transport length 2400 mm, foot width 850 mm. Extendable up to 4 meters in 2 parts (WLL 200 kg). With use of the third part extendable up to 5850 mm (WLL 200 kg). Note: When working with the Gevelridder, you should never go under the load. In addition to the fixation of the hooks, the Gable Knight should be secured to the floor in an elevator shaft with a safety strap.
Working with the Gable Knight special: Elevator shaft version.
Lifting is very taxing on the body, especially if done frequently. When lifting heavy objects, there is a chance of damaging the back muscles, the connective tissue ligaments around the spine or the intervertebral discs. The heavier one lifts, the greater the risk of damage. But even lifting light objects can lead to damage, for example by having to do it in an unfavorable position (bent, twisted or with raised arms) or by lifting too many times in a row and not enough recovery time. For more information. The Giver Knight will make sure you get your job done vertically efficiently and safely.
DE: Facade Ritter, fresh Hebevorrichtung aluminum, up to 5.85 mtr 200 kg.
These prices include no shipping costs for travel in the Netherlands and Belgium.
FR: Façade Chevalier L’élévateur de aluminum, sur 5.85 mtr, 200 kg.
Less prix ne comprent pas les frais de livraison pour les clients en dehors des Pays-Bas et en Belgique.
UK: Sir LiftAlot, Facade Knight, Aluminum lifter up to 5.85 m, 200 kg.
Prices do not include shipping costs for customers outside the Netherlands and Belgium.
Weight | 23 kg |
---|---|
Dimensions | 2.25 × 0.85 × 0.40 cm |
Retracted length (meters) | 2.25 |
Extended length (meters) | 6.00 |
Dead weight (kg) / Scaffold height | 23 |
Width of foot (meters) | 0.85 |
Max. load with spacer (kg) | 200 |
Max. load (kg) | 250 |
Retracted length with spacer (meters) | No |
